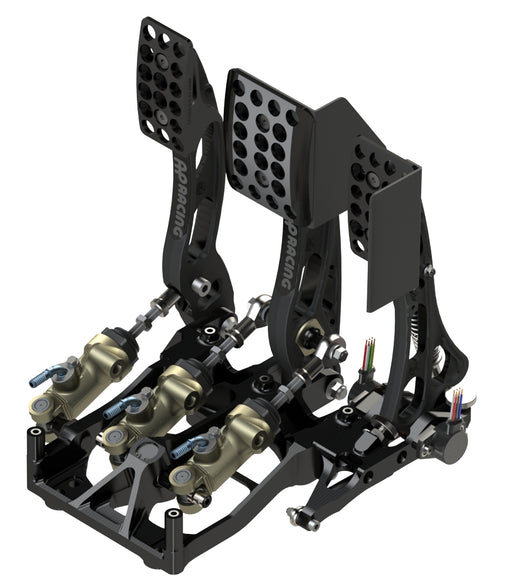

Quick answer: You don't need a pedal box to run Bosch Motorsport ABS — a factory master cylinder and booster works well. If you do fit one, use ABS-rated master cylinders (AP Racing centre-valve or Tilton 79-Series), size bores to Bosch's ~80 bar lock-pressure optimum, and check front cylinder travel — on big-caliper cars volume, not pressure, is usually the limiting factor. Swapping an OEM booster and tandem master cylinder for a dual-master pedal box is one of the most common upgrades on a serious circuit car. Add Bosch Motorsport ABS to the same build and the master cylinder choice stops being a bolt-on decision and becomes an engineering one — the family, the bore sizes and the balance-bar split all have to suit the ABS as well as the driver. You don't need a pedal box to run ABS Worth saying up front: plenty of ABS M5 installs run the factory master cylinder and booster, and run them with excellent results — the M5 controls pressure downstream of whatever generates it. If the budget covers one major upgrade, the ABS is the one that changes braking performance and repeatability; the pedal box can come later, or not at all. This post is for the builds where both are on the table. The pedal box already suits the M5 The Bosch M5 is a two-circuit system: one hydraulic inlet for the front axle, one for the rear. A balance-bar pedal box is natively front/rear split — two master cylinders, one per circuit — which is exactly the architecture the M5 wants, and a cleaner match than the diagonal-split tandem arrangement most road cars leave the factory with. So when a build does make the move, the conversion suits the ABS perfectly. The catch is what goes in it. Settle the family before the bore We've covered the failure mode in detail elsewhere: under ABS control the system's pumps push fluid back toward the master cylinders, and conventional cut-off-port cylinders can have their seals progressively nibbled by that reverse flow. The consequence goes beyond a deteriorating pedal — seal debris carried downstream ends up inside the ABS hydraulic unit, where it interferes with the valves and degrades control. The hydraulic unit cannot be serviced, flushed or repaired internally: contamination that reaches it means replacing the unit. So the cylinder family is settled first — AP Racing's centre-valve cylinders (the CP7198 line and its siblings) or Tilton's 79-Series, both built for ABS use. That holds for pull-type pedal boxes too: for AP's flagship CP5596 reverse-pull floor-mount box, the matching cylinder is the CP6467 — a pull-type, trunnion-mounted centre-valve unit that AP rates specifically for ABS and high-pressure applications, available in nine bores from 14.9 to 25.4 mm. Only once the family is right does bore sizing begin. Size to the ~80 bar optimum Bosch's M5 manual gives a number most brake-sizing conversations ignore: a locking pressure of around 80 bar is optimal for the ABS. Below it, the system has less pressure resolution to work with and the pedal goes soft; well above it, hydraulic elasticity grows and blunts control quality. So the target isn't just "a firm pedal the driver likes" — it's a line pressure at lock that lands the system in the window the ABS controls best. That turns bore selection into a real calculation. From the car's weight transfer at target deceleration on its actual tyre, you compute the line pressure at which each axle locks, then check it against that ~80 bar figure. On a well-matched package — say a time-attack front end with a six-piston caliper on a 370-odd mm disc — front lock tends to land from the high-60s up to right around 80 bar across the realistic decel band. That's the tell that the caliper, disc and pad are hydraulically well suited to the M5, and that you don't need to fight the numbers with odd master-cylinder bores. The gating check is travel, not pressure Here's the part that catches people out. Once the family is right and the pressure lands in the window, the deciding calculation is usually volume, not pressure. A smaller front bore buys pressure and a lighter pedal — but it costs travel, and with ABS the pedal must never approach the floor mid-control-event, because the system needs travel in reserve while it's cycling. Feeding two large six-piston calipers from a small front cylinder, the front master-cylinder swept volume against the calipers' fluid uptake — pad and caliper compliance, knockback, line swell, plus a margin for what the ABS itself demands — becomes the gating check. Get the pressure right and the travel wrong and the car brakes beautifully until the first ABS event on a bumpy corner. The balance bar still earns its keep People assume ABS makes the balance bar redundant. It doesn't. The mechanical bias still sets the car's behaviour with ABS off — a real map-switch position, and where you want sensible bias if the electronics ever drop out — and it shapes control quality within the ABS range too. A static front bias in the 55–60% region is a sensible starting point, tuned from there on data rather than guessed. ABS-rated doesn't mean fit-and-forget A centre-valve or 79-Series cylinder is built to tolerate ABS operation, not to ignore it. The pressure oscillations and vibration the system feeds back into the hydraulics are still wear drivers, and Bosch's own manual calls for frequent master-cylinder inspection on ABS cars. So the cylinders go on a maintenance schedule like any other wear item — inspected regularly, overhauled or replaced as condition dictates — rather than fitted and forgotten. The short version A factory master cylinder and booster works well with the M5 — the pedal box is the optimisation, not the price of entry. When you do convert, a balance-bar pedal box is the right hydraulic architecture for the M5's two-circuit front/rear system. Settle the master-cylinder family first — AP centre-valve or Tilton 79-Series — before touching bore sizes. The wrong family can shed seal debris into the ABS unit, and the unit can't be cleaned, flushed or repaired — only replaced. Size to Bosch's ~80 bar lock-pressure optimum, not just to pedal feel. On a big-caliper front end, front master-cylinder travel and volume are usually the gating check, not pressure. ABS-rated cylinders still live on a maintenance schedule — inspected, overhauled or replaced as needed. Converting to a pedal box on an ABS car? Talk to us — we size the whole hydraulic circuit as one job. More on ABS-rated cylinders in master cylinders and motorsport ABS, and on the system itself in our Bosch Motorsport ABS guide. 909 Motorsport is an Authorized Bosch Motorsport Dealer in Newcastle NSW. We spec ABS-compatible pedal-box hydraulics — master cylinders, bore sizing and circuit layout — as part of a Motorsport ABS install.

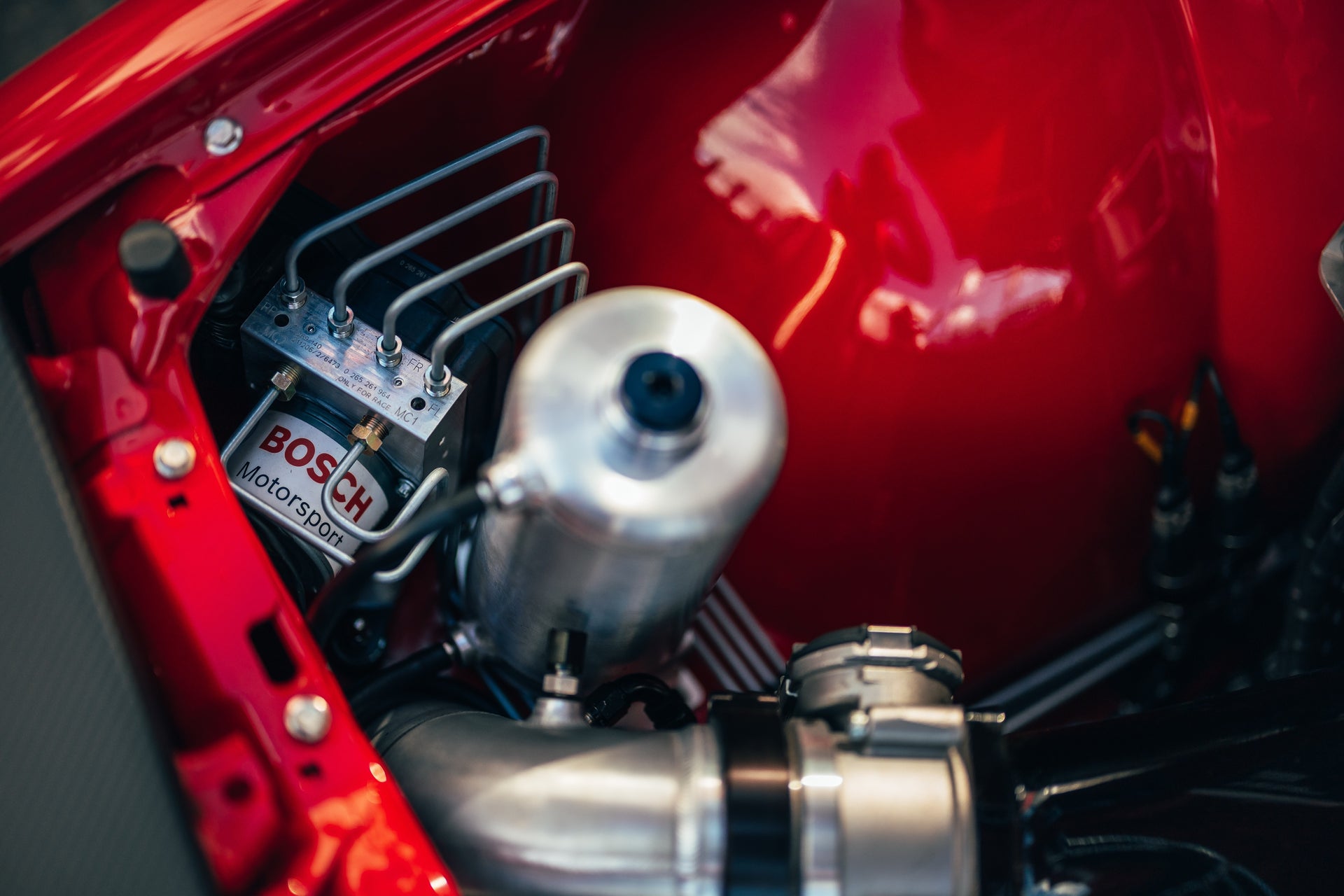

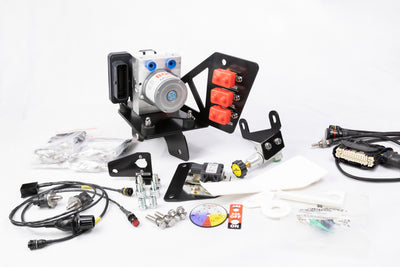

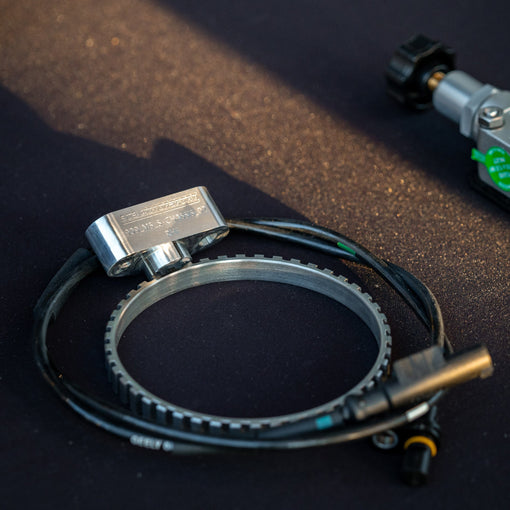

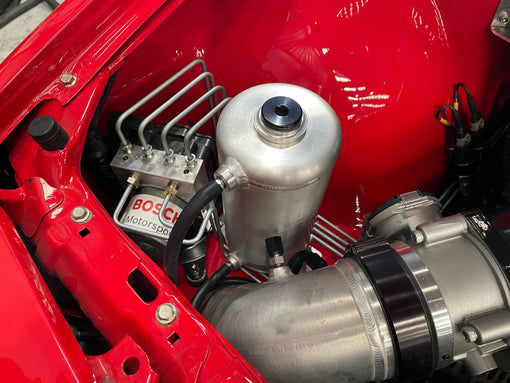

Quick answer: A vehicle-specific Bosch ABS M5 install covers hydraulic-unit bracket engineering from a 3D scan of the bay, wheel-speed sensor mounting, new hardlines and fittings, CAN integration with the dash and logger, and commissioning through the MSA Box II — and the details change with every chassis. A Bosch Motorsport ABS M5 kit arrives as a defined set of components: hydraulic unit, wheel-speed sensors, brake-pressure sensors, map switch, warning lamp, connectors and loom. Making that kit live in a specific car — where the hydraulic unit actually sits, how the hardlines route, where the sensors mount — is where the real work happens, and it's different for every platform. Vehicle-specific, not generic The Clubsport kit's generic harness suits engine-bay and front-footwell mounting on almost anything, which is why it's the usual club-level entry point. But a proper integration goes further: we build vehicle-specific M5 packages for a growing list of platforms — Nissan R and S-chassis (R32–R34, S14–S15), Toyota GR Yaris, Honda NSX, Mitsubishi EVO 4 through X, Honda S2000, Subaru WRX GD/STI — replacing the factory ABS unit with the full motorsport system rather than just adding hardware alongside it. Where the hydraulic unit goes The M5 hydraulic unit isn't a drop-in for the factory ABS pump — different mass, different port layout, different mounting geometry. Bracket design starts with a 3D scan of the actual bay, so the mount is built to the real geometry of that chassis rather than a generic template. It has to clear the factory harness, sit somewhere serviceable, and not add noise or vibration issues to a system controlling brake pressure. Sensors, wiring and the cockpit switch Four active DF11 wheel-speed sensors and front/rear brake-pressure sensors feed the control loop — sensor mounting has to keep the tone-ring gap consistent under suspension travel, which rules out some of the more casual mounting approaches we've seen on other builds. Wiring runs on the kit's Bosch-supplied loom back to the ECU; the 12-position map switch and ABS warning lamp go somewhere the driver can reach and see without taking eyes off the road for long. Hardlines and fittings Where the ABS unit's ports don't line up with the existing brake lines, that's new hardline — bent and routed to suit the chassis, fitted with Goodridge tube nuts, sleeves and olives (or Speedflow where the install calls for it). This is also where the master cylinder compatibility question has to be settled — bore size and ABS-rated seals affect how the hydraulic circuit is laid out, so it's decided before the lines are bent, not after. CAN integration and commissioning Once the hardware's in, the M5 goes onto the car's CAN bus so wheel speeds and system status reach the dash and logger alongside the engine data — from any ECU, since the ABS runs independently of engine management. Final commissioning and calibration runs through the MSA Box II interface before the car goes back on track. The short version A generic ABS M5 kit and a vehicle-specific install are different jobs — mounting, wiring and hardline routing all change with the chassis. Hydraulic unit brackets are engineered to the actual bay geometry, not a generic template. Sensor mounting, hardline fittings (Goodridge/Speedflow) and CAN integration all have to work together, not just individually. We build vehicle-specific M5 kits for a growing list of platforms — talk to us if yours isn't listed yet. More on the system itself — kits, sensors, maps — in our Bosch Motorsport ABS guide. 909 Motorsport is an Authorized Bosch Motorsport Dealer in Newcastle NSW. We design, supply and install vehicle-specific Motorsport ABS integration kits across Australia.

Quick answer: Not every racing master cylinder suits motorsport ABS. The system pumps fluid back through the master cylinder during every control event, and both AP Racing and Tilton advise that conventional cut-off-port cylinders can suffer seal damage under ABS operation — Tilton's 79-Series and AP Racing's centre-valve designs are the ABS-rated options. A Bosch Motorsport ABS M5 kit arrives with everything the braking electronics need: hydraulic unit, sensors, map switch, loom. What it can't include is the part most likely to cause trouble in an ABS conversion — the master cylinders already on the car. What ABS does to a master cylinder In a conventional (non-ABS) system, a master cylinder sees pressure in one direction: pedal in, pressure out. Under ABS control the flow reverses — during every control event the system's pumps push fluid back toward the master cylinders, exposing the cylinder seals to pressure pulsation they were never designed to see. Bosch's ABS M5 documentation requires frequent master cylinder inspection for exactly this reason. And the pedal-box manufacturers say the same thing from their side: both AP Racing and Tilton publish advisories that conventional racing master cylinders — specifically designs with cut-off ports — can suffer seal damage under ABS operation. The failure mode The seal damage is progressive and mostly invisible: the leading edge of the primary seal passes the cut-off port under reverse flow, and each pass nibbles at it. The symptom, when it finally shows, is a soft pedal or a slow fluid loss — in a car that brakes deeper and harder than anything on the road. And the seal isn't the end of it. The material those passes remove has to go somewhere, and under ABS operation it's carried downstream into the hydraulic unit, where debris interferes with the valves and degrades control. The hydraulic unit can't be serviced, flushed or repaired internally — contamination that reaches it means replacing the unit. A worn seal is a master-cylinder overhaul; what it sheds can write off the most expensive hydraulic component in the braking system. It's not a risk worth carrying to save a master cylinder swap. What to run instead Both major pedal-box makers build ABS-rated master cylinders: Tilton 79-Series — designed for ABS use, and the compact package suits most pedal-box installs. AP Racing centre-valve cylinders — the centre-valve architecture removes the cut-off-port interaction entirely. The family covers pull-type installs too: the CP6467 trunnion-mount cylinder suits AP's CP5596 reverse-pull pedal box and is rated by AP for ABS and high-pressure applications. If a pedal box is going in at the same time as the ABS — a common pairing in time-attack and circuit builds — the master cylinder spec should be part of the ABS order, not an afterthought. Bore sizing also interacts with the ABS calibration and pedal feel, so it's worth confirming the whole hydraulic spec at once. The short version Motorsport ABS reverses fluid flow into the master cylinders; cut-off-port cylinders can suffer seal damage — and shed debris into the ABS hydraulic unit, which can't be cleaned, flushed or repaired — only replaced. Bosch requires regular MC inspection on ABS cars; AP Racing and Tilton both publish ABS advisories. Tilton 79-Series and AP Racing centre-valve cylinders are the ABS-rated choices. Speccing the ABS kit? Ask us to confirm the master cylinder spec at the same time — it affects both safety and ABS performance. More on the system itself — kits, sensors, maps and install — in our Bosch Motorsport ABS guide. 909 Motorsport is an Authorized Bosch Motorsport Dealer in Newcastle NSW.
